What are set screws? A set screw is a type of screw generally used to secure an object within or against another object, normally not using a nut. The most common examples are securing a pulley or gear to a shaft. Set screws are usually headless (also called blind), meaning that the screw is fully threaded and has no head projecting past the major diameter of the screw thread. If a set screw has a head, the thread will extend all the way to the head.

what are set screws

A blind set screw is almost always driven with an internal-wrenching drive, such as a hex socket (Allen), star (Torx), square socket (Robertson), or slot.

12.9 grade black zinc cup point slotted set screw wholesale 18-8 stainless steel hexagon socket set screw supplier custom metric phillips set screw manufacturers
m10 black phosphating set screw cone point zinc plated pozidriv aluminum set screws wholesale zinc plated torx drive flat point set screw manufacturers



The set screw passes through a threaded hole in the outer object and is tightened against the inner object to prevent it from moving relative to the outer object. It exerts compressional or clamping force through the bottom tip that projects through the hole.

Point types of set screws

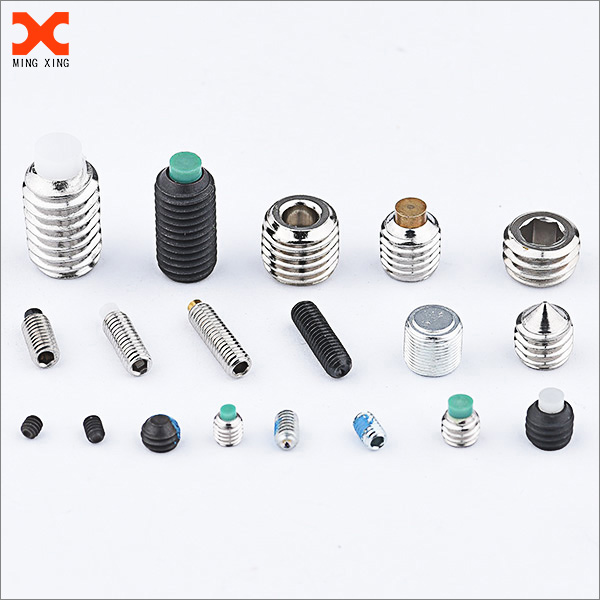

Set screws appear with a variety of tip (point) types. The different shaped tips have different properties that engineers can utilize. If an engineer were to use a detent to ensure proper nesting of the screw, they might choose to use a cone point type of screw. One might often need to use a flat point when the screw must press perfectly flat against a surface. The most common type is the cup point. This type works well because the surface is rounded so that a small surface area is in contact, but it does not have extremely high stress at one point like that of a cone point. Durability studies show that the cup point offers superior resistance to wear while maintaining a strong grip. Knurled cup points offer the added advantage of a locking action (similar to that of a serrated lock washer) that prevents the screws from working loose in high-vibration applications.

Stainless steel socket set screw cup point stainless steel socket soft tip set screws manufacturer stainless steel hex socket set screw cone point
 stainless steel hex socket oval point set screw supply  Micro socket cap flat point grub screw wholesale  black zinc half dog point hex set screw manufacturer

Common points include the following:

  • Flat point
  • Domed point
  • Cone point
  • Cup point
  • Extended point (pilot point, dog point)
  • Knurled cup point
